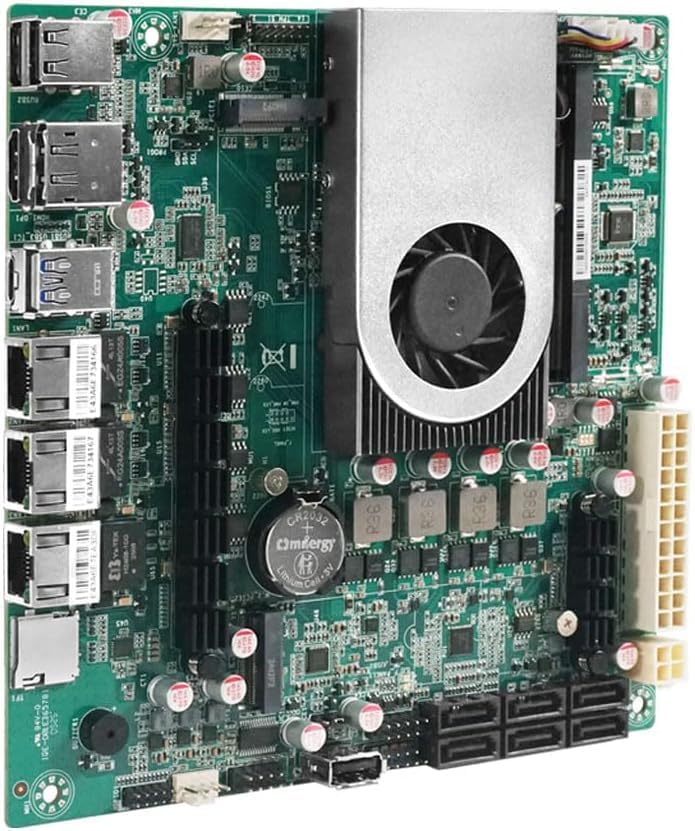

1 * 10G 2*i226-V 2.5G 3LAN Intel Low Power N150 NAS Motherboard 6-Bay 6*SATA3.0 2*M.2 NVMe 1*DDR5 Soft Router Firewall ITX Mainboard
Produktdetails
| Artikelnummer | 212255185 | Erscheinungsdatum | 2026/04/06 | Listenpreis | €80.00 | Modellnummer | 212255185 | ||
|---|---|---|---|---|---|---|---|---|---|
| Kategorie | |||||||||
Intel Alder Lake-N N150/N355 CPU Memory 1*DDR5 memory slot, 4800MHz, memory supports up to 32GB Network 3*LAN (2*Intel i226 2.5G+1*10G network port), supports diskless boot, network wake-up Display support 1*HD+1*DP, supports synchronous or asynchronous display Storage device 6*SATA3.0, 2*M.2(NVME) I/O interface 3*LAN (2*Intel i226 2.5G+1*10G network port) 1*HD 1*DP 1*USB3.0 1*TYPE-C (full function) 2*USB2.0 1*TF_CARD (TF card) Onboard I/O interface 1*COM 2*USB2.0 (pin header), 2*USB2.0 6*SATA3.0 2*M.2(NVME) 1*FP, 1*TPM 1*CPUFAN, 1*SYSFAN Watchdog timer 0-255S, system reset System selection Win10, LINUX Power supply specification ATX 24Pin+4Pin power supply Temperature Storage temperature: -20℃ -70℃ Operating temperature: -0℃ -60℃ Size 170mm*170mm
- 【Low power processor】Intel Celeron Processor N150: 4 Cores 4 Threads, 6M Cache, up to 3.60 GHz, with Intel UHD Graphics.
- 【High speed network card】This NAS motherboard has 3* LAN (2*Intel i226+1*10G) network ports to deliver a secure, stable and fast network connection for professional network security firewall appliance and multimedia use.
- 【Industrial NAS Motherboard 】Mini-1TX size: 17.0 cm x 17.0 cm,High-density moisture-proof fiber circuit board Ultrafast Connectivity--2* USB3.0, 2* USB2.0, 2* built-in USB on board for for USB booting of the NAS system. 1* HDMI2.1 and 1* DP1.4b to support dual 4K@60Hz display.
- 【 Storage and Memory】1* DDR5 slots, compatible with 4800/5200/5600MHz (non-ECC), RAM supports up to 32GB（If you need to use 32GB of memory, please use Samsung's brand）, 6* SATA3.0 with 6Gbps (SATA1 is native, SATA2-SATA6 is extended by the JMB585 chip) and 2* M.2 NVMe 2280 PCIE3.0x1, stable and ultra-fast transfer speed.Dual 4K Display: This mini-ITX board has HDMI2.0 and DP1.4 ports at 4K@60Hz.
| Brand | HKUXZR |
|---|---|
| Platform | Linux, Windows |
| CPU Model | Celeron N |
| Model Name | N150 |
| Chipset Type | Intel |
| Manufacturer | HKUXZR |
| Model Number | HKUXZR |
| Number of Ports | 30 |
| Total Usb Ports | 4 |
| Processor Socket | FCBGA1264 |
| Total SATA Ports | 6 |
| Compatible Devices | Router |
| Memory Clock Speed | 4800 MHz |
| Warranty Description | One year warranty |
| Compatible Processors | N150/N355 |
| RAM Memory Technology | DDR5 |
| Memory Slots Available | 1 |
| Graphics Card Interface | Integrated |
| Memory Storage Capacity | 32 GB |
| Ram Memory Maximum Size | 16 GB |
| Number of Ethernet Ports | 3 |
| Main Power Connector Type | 24-Pin+4 |
| Total Number of HDMI Ports | 1 |
| System Bus Standard Supported | SATA 3 |
