uxcell DC 12-24V ON/OFF/ON Rotary Battery Disconnect Switch Cut/Off Battery Power Switch 300 Amp for Ship Boat RV Truck with Screw
Produktdetails
| Artikelnummer | 221118816 | Erscheinungsdatum | 2026/05/03 | Listenpreis | €12.40 | Modellnummer | 221118816 | ||
|---|---|---|---|---|---|---|---|---|---|
| Kategorie | |||||||||

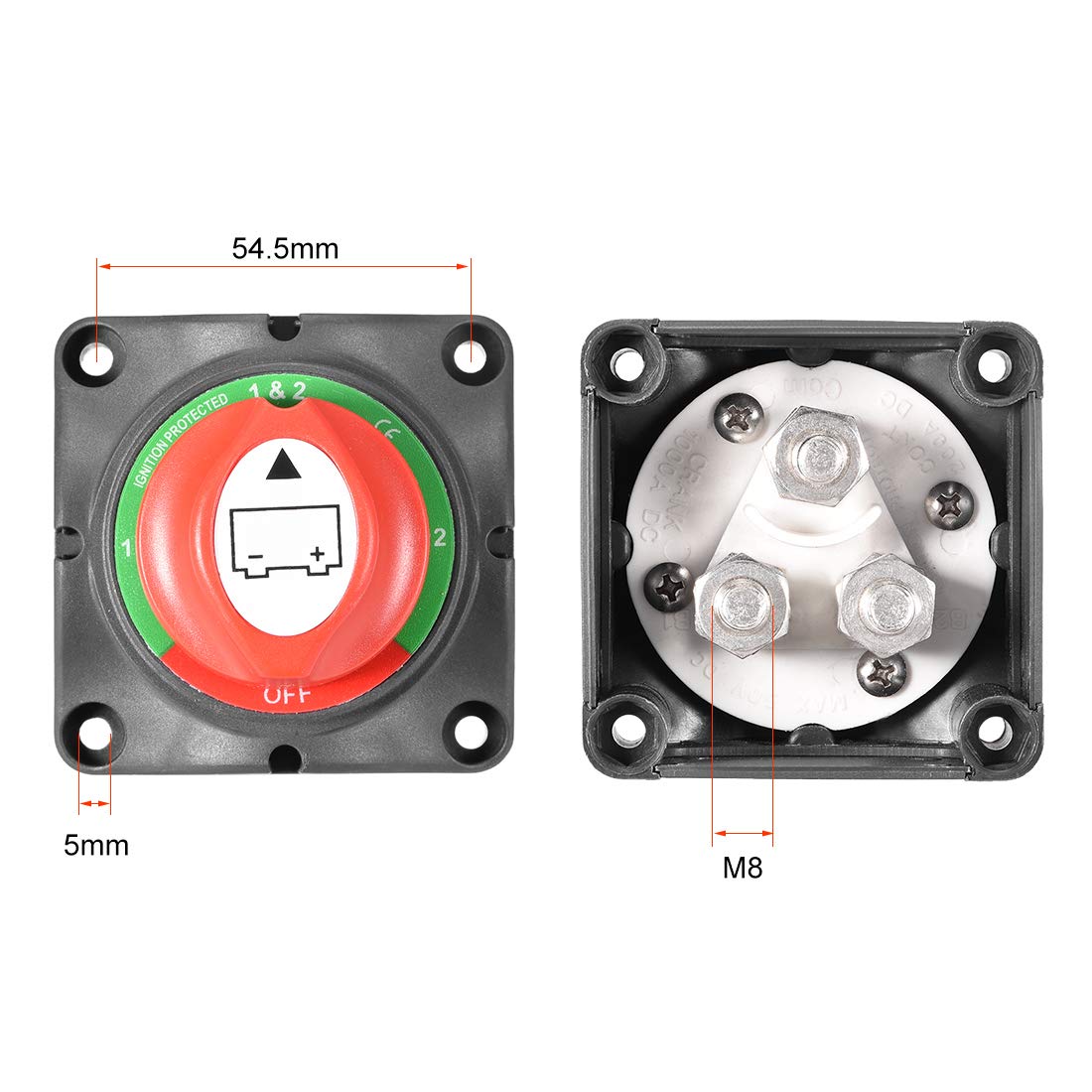

Description:1.Mainly use in Van, Boat, Rv, Truck, etc. also can be used as interior and exterior of the increase in all kinds of electrical devices on/off keys (eg: Strobe, chassis lights, fog lights).2.Easy operation: disconnect and reconnect the battery by one simple turn of the knob on it.3.You can take it with you to prevent unauthorized use of your boat, industrial equipment, etc. It will work anywhere you need a battery cutoff switch.Specification:Product Name：Battery Disconnect SwitchPosition: 2-ON/OFFRated current: 300ARated voltage: DC 12V-24VMaterial: Plastic, MetalTotal Size:67.5*67.5*70mm（L*W*H)Mounting Hole Distance: about 54.5*54.5mm(L*W)Mounting Hole Diameter: 5mmScrew: M8Thread diameter： 8mm Package Content :1 x Battery Disconnect Switch/ 4 Mounting Hole Screw( M5*40mm）
- 1. Can be controlled by switching to a 90° counterclockwise position, with 12V up to 24V DC systems to isolate and secure the electrical system, Provides a simple and economical way to separate batteries
- 2.Instantaneous current，1000A, Rated current,300A,ON-OFF/ON- 3 positions, With 4 Mounting Hole Screw ( M5*40mm)
- 3. Easy to install, ABS plastic housing, making it for marine applications, rear cover insulates terminals against any short of circuits, equipped with 4 sets of bolts
- 4. Disconnects the battery safely, to remove any power draw from the battery when the boat is not in use Compact size, sleek modern appearance, sturdy and durable
- 5. Ignition protection, Safely installed on petrol-powered boats, Widely Application in Ship Boat Small Yacht RV Truck ATV UTV
| Model | a19012400ux0214 |
|---|---|
| Terminal | Screw |
| Brand Name | uxcell |
| Unit Count | 1 Count |
| Part Number | a19012400ux0214 |
| Switch Type | Rotary |
| Contact Type | Normally Closed |
| Manufacturer | uxcell |
| Actuator Type | Rotary |
| Material Type | Acrylonitrile Butadiene Styrene, Plastic |
| Mounting Type | Panel Mount |
| Connector Type | Screw |
| Control Method | App |
| Current Rating | 300 Amps |
| Operation Mode | ON-OFF |
| Item Dimensions | 2.66 x 2.66 x 2.76 inches |
| Number of Items | 1 |
| Operating Voltage | 24 Volts |
| Number of Positions | 3 |
| Connectivity Protocol | X-10 |
| International Protection Rating | IP54 |
